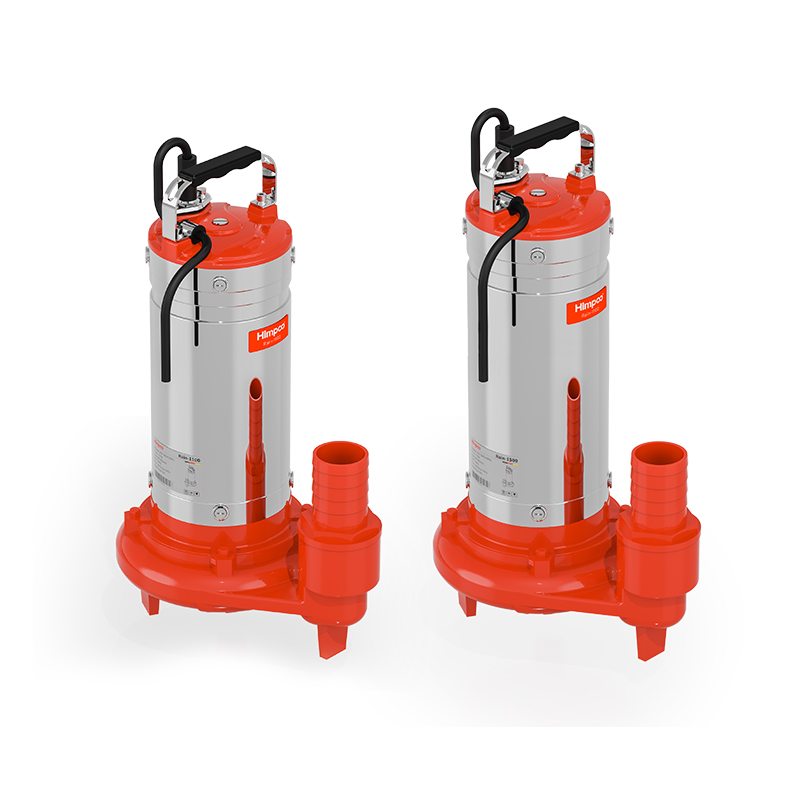

Rain-1100/Rain-1500

The rainwater pump is equipped with internal protection devices. The motor, located at the upper part of the pump, is a single-phase or three-phase asynchronous motor, while the pump, situated at the lower part of the motor, features a centrifugal impeller and volute casing structure. A double mechanical seal is adopted for the dynamic sealing between the pump and motor. For static sealing at fixed joints, oil-resistant rubber O-rings are used.

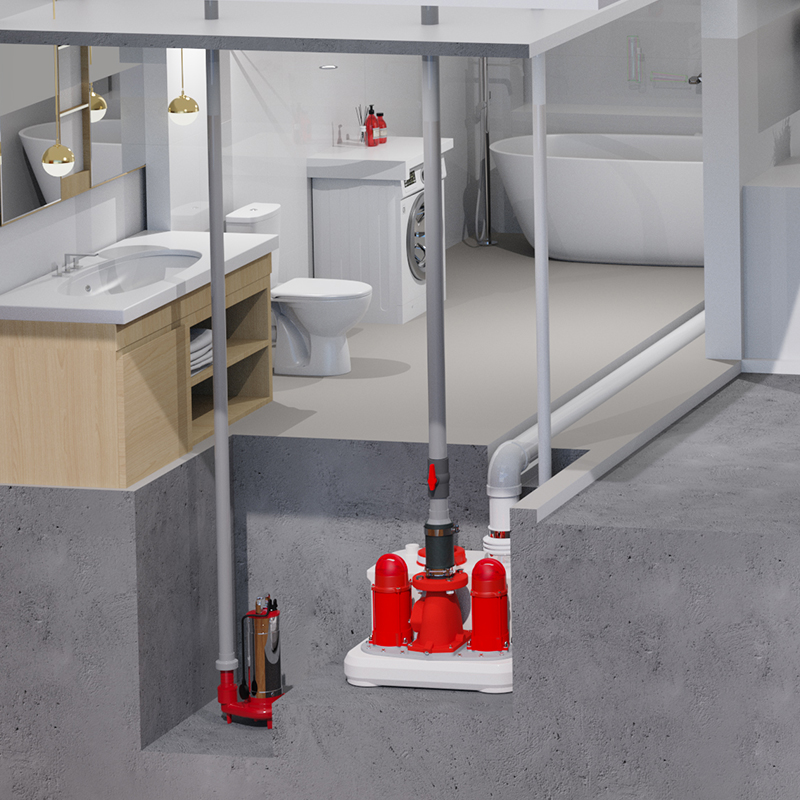

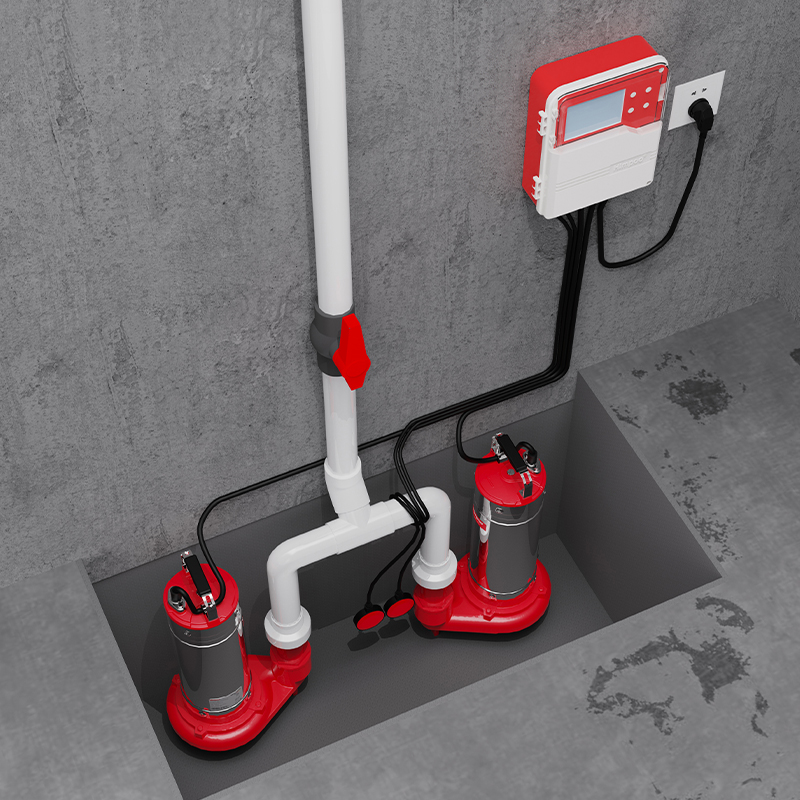

Due to its compact size and lightweight design, this series of electric pumps is suitable for a wide range of applications, including rural well water extraction, farmland irrigation, garden watering, and household water supply. It can also be used for industrial drainage, construction site water supply and drainage, as well as aquaculture applications.

Rain-1100/Rain-1500 Data Sheet

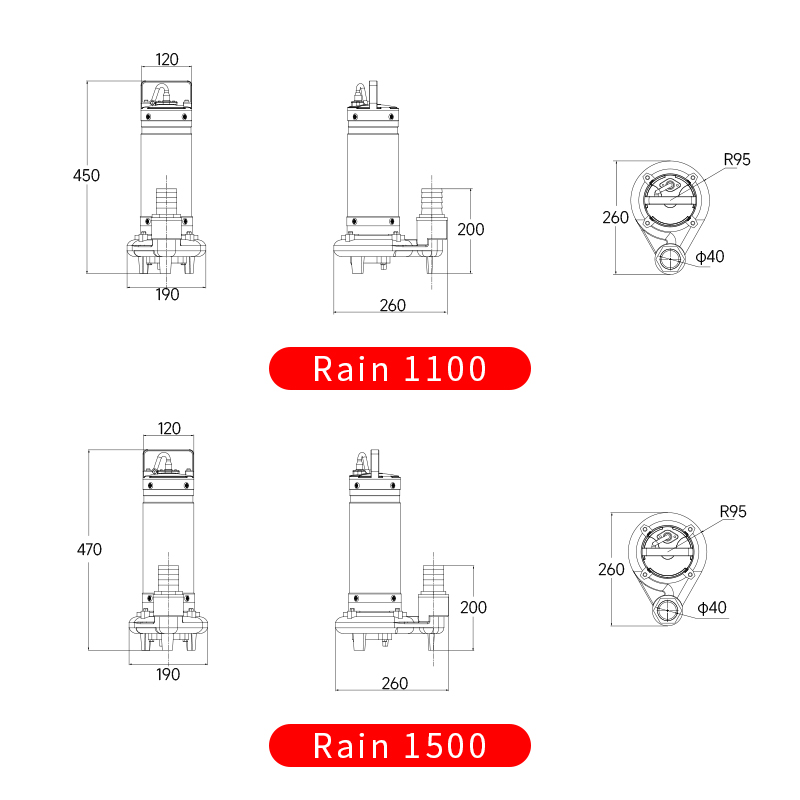

Dimensions (Height x Width x Depth)

Rain-1100:260×260×450

Rain-1500:260×260×470

Technical features of Rain-1100/Rain-1500

Power 1.1kw 1.5kw

Outlet De50mm De50mm

Liquid Temperature 45℃ 45℃

Max Liquid temperature 65℃/10min 65℃/10min

Environmental temperature 45℃ 45℃

Insulation class F-class F-class

Maximum Particulate Matter 40mm 40mm

Protection level IP68 IP68

Switch system Float Switch Float Switch

Dimensions 260*450/mm 260*450/mm

Cable length 10M 10M

HP value 5-8 5-8

Voltage 220~240V/50Hz 220~240V/50Hz

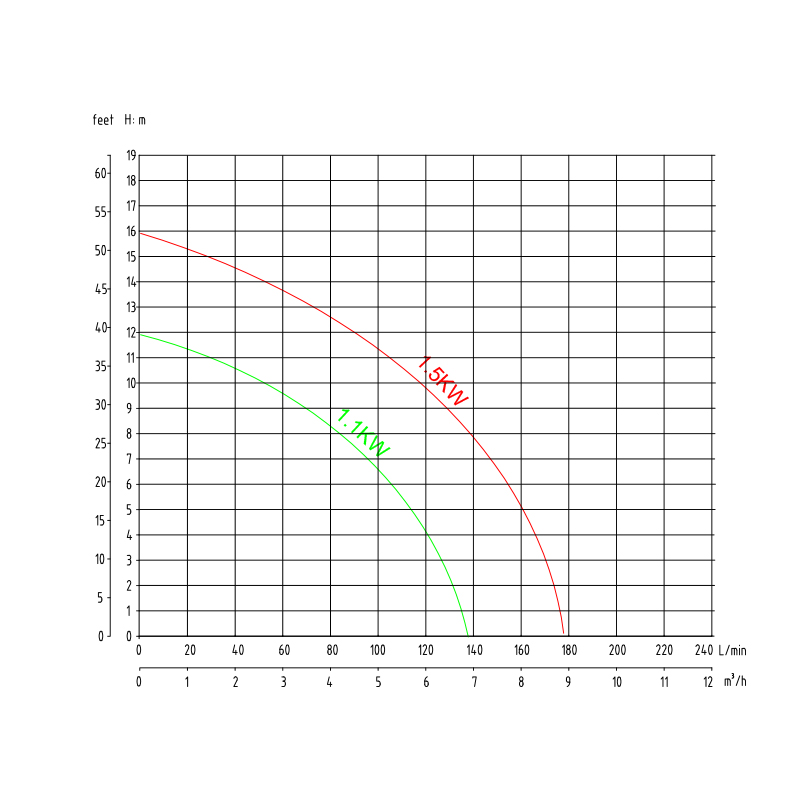

Flow rate Qmax 7m³/h Qmax 9m³/h

Head Hmax 12m Hmax 16m

Rotating speed 2860 r/min 2860 r/min

Current 7.6A 9.5A

Take-off water level 20cm 20cm

Weight 20KG 22KG
